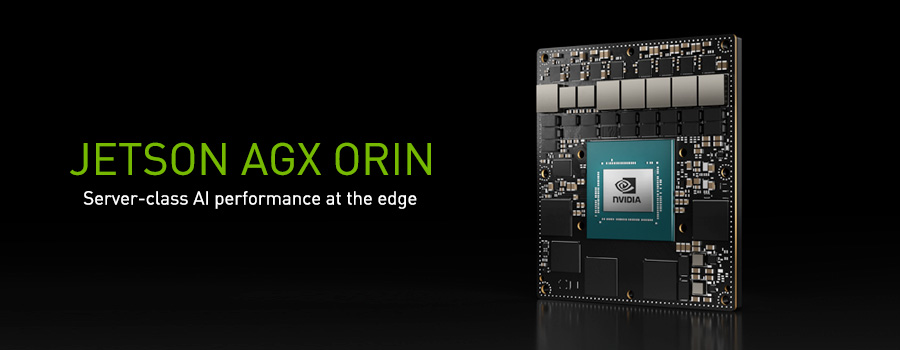

An Unprecedented Edge AI and Robotics Platform

NVIDIA announces the most complete AI embedded software stack for robotics, vision AI, and edge applications.

Jetson AGX Orin modules deliver up to 275 TOPS of AI performance with power configurable between 15W and 60W. This gives you up to 8X the performance of Jetson AGX Xavier in the same compact form factor. Jetson AGX Orin is available in 64GB ,32GB, and Industrial versions.

Key Features

Jetson AGX Orin 32GB

> 1792-core NVIDIA Ampere architecture GPU with 56 tensor cores
> 2x NVDLA v2.0
> 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU
> 32GB 256-bit LPDDR5
> 64GB eMMC 5.1

> PVA v2.0

• Power

> Module Power: 15W - 40W

Jetson AGX Orin Module Technical Specifications

	Jetson AGX Orin 32GB	Jetson AGX Orin 64GB
AI Performance	200 TOPS (INT8)	275 TOPS (INT8)
GPU	NVIDIA Ampere architecture with 1792 NVIDIA® CUDA® cores and 56 Tensor Cores	NVIDIA Ampere architecture with 2048 NVIDIA® CUDA® cores and 64 Tensor Cores
Max GPU Freq	930 MHz	1.3 GHz
CPU	8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3	12-core Arm® Cortex®-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3
CPU Max Freq	2.2 GHz
DL Accelerator	2x NVDLA v2.0
DLA Max Frequency	1.4 GHz	1.6 GHz
Vision Accelerator	PVA v2.0
Memory	32GB 256-bit LPDDR5 204.8 GB/s	64GB 256-bit LPDDR5 204.8 GB/s
Storage	64GB eMMC 5.1
CSI Camera	Up to 6 cameras (16 via virtual channels*)  16 lanes MIPI CSI-2  D-PHY 2.1 (up to 40Gbps) | C-PHY 2.0 (up to 164Gbps)
Video Encode	1x 4K60 | 3x 4K30 | 6x 1080p60 | 12x 1080p30 (H.265) H.264, AV1	2x 4K60 | 4x 4K30 | 8x 1080p60 | 16x 1080p30 (H.265) H.264, AV1
Video Decode	1x 4K60 | 3x 4K30 | 6x 1080p60 | 12x 1080p30 (H.265) H.264, AV1	1x 8K30 | 3x 4K60 | 7x 4K30 | 11x 1080p60 | 22x 1080p30 (H.265) H.264, VP9, AV1
UPHY	Up to 2 x8, 1 x4, 2 x1 PCIe Gen4 (Root Port and Endpoint) 3x USB 3.2
Networking	1x GbE 1x 10GbE
Display	1x 8K60 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1
Other I/O	4x USB 2.0 4x UART, 3x SPI, 4x I2S, 8x I2C, 2x CAN, DMIC & DSPK, GPIOs
Power	15W - 40W	15W - 60W
Mechanical	100mm x 87mm 699-pin Molex Mirror Mezz Connector Integrated Thermal Transfer Plate

* Virtual channel-related camera information for Jetson AGX Orin is not final and subject to change.
Refer to the Software Features section of the latest NVIDIA Jetson Linux Developer Guide for a list of supported features.
