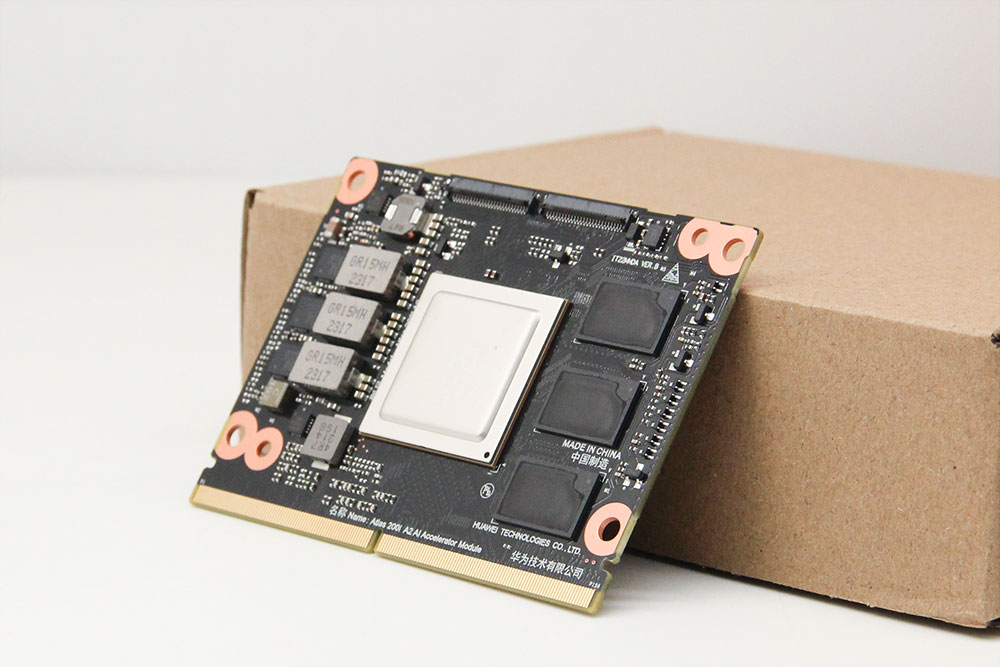

HUAWEI Ascend Atlas 200I A2 Module

Ascend Atlas 200I A2 Module

provides CPU, AI computing, video codec, ISP, graphic output and others

* High Speed SerDes:
8 lane: Supports 4x PCIe 3.0, 4x SGMII, 4x USB 3.0, or 4x SATA 3.0 ports, 2x RGMII(4 MACs shared with SGMII)

* Other I/O: 5x UART, 4x I2C, 2x SPI, 4x CAN

* Audio and Video I/O:
2x HDMI, MIPI-CSI: 8 lane/MIPI-DSI: 4 lane, 2x I2S, 1 set of analog audio inputs and outputs


* Power: 25W / 21W






Application Scenarios
Embedded intelligence at the edge
* Smart device
* Drone
* Industrial computer
* Robot
* Image analysis
* Video analysis
* Image segmentation
* Object recognition

Product Name
Atlas 200I A2
AI Computing
20 TOPS INT8, 10 TFLOPS FP16
8 TOPS INT8, 4 TFLOPS FP16
Memory
20 TOPS:
LPDDR4X, 12 / 8 / 4 GB, 51.2 / 34.1 /34.1 GB/s, support ECC

8 TOPS:
LPDDR4X, 4 GB, 25.6 GB/s, support ECC
Encoding/ Decoding
20 TOPS:
H.264 / H.265 hardware encoding, 20-channels 1080P 30FPS, 3-channels 4K (3840 x 2160) 50FPS
H.264 / H.265 hardware decoding, 40-channel 1080P 30FPS, 4-channel 4K (3840 x 2160) 75FPS
8 TOPS:
H.264 / H.265 hardware encoding, 12-channels 1080P 30FPS, 2-channels 4K (3840 x 2160) 50FPS
H.264 / H.265 hardware decoding, 20-channel 1080P 30FPS, 2-channel 4K (3840 x 2160) 75FPS
JPEG encoding: 1080p 256 FPS; decoding: 1080 512FPS
max. resolution: 16384 x 16384
High-Speed IO
8 lane: Supports 4x PCIe 3.0, 4x SGMII, 4x USB 3.0, or 4x SATA 3.0 ports
2x RGMII(4 MACs shared with SGMII)
Audio/Video IO
2x HDMI/MIPI-CSI: 8 lane/MIPI-DSI: 4 lane / 2x I2S / 1 set of analog audio inputs and outputs
Other I/O
5x UART, 4x I2C, 2x SPI, 4x CAN
Mechanical
82mm*60mm*7mm
Weight
85g
Operating Temperature
-20°C ~ 80°C(-4°F~176°F)
Power
25W / 21W
