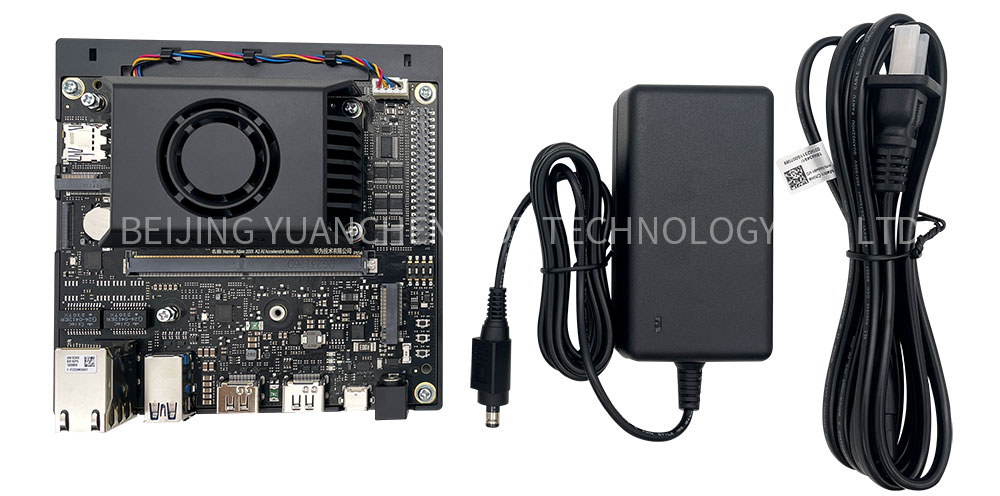

HUAWEI Ascend Atlas 200I DK A2 developer kit

HUAWEI Ascend Atlas 200I DK A2 developer kit

The Ascend Atlas 200I DK A2 developer kit is a product for algorithm verification and application development scenarios for AI developers. It has features such as hardware interface, reference code, algorithm model and tools covering the whole process. It is suitable for individual developers, college teachers and students, and industrial engineers.Meet the needs of AI technology learning, AI teaching practice, creative application development, industry algorithm verification and other scenarios.


Ascend Atlas 200I DK A2 developer kit
AI Perf : 8 TOPS INT8
Memory : LPDDR4X，4 GB，support ECC
Size : 135 mm * 120mm * 44 mm
Application Scenarios : Education/Mechanical Arm/Intelligant Car


The code examples are easy to learn and easy to use

* Provide intelligent car, robot arm, voice interaction and other end to end DEMO
* Provide visual analysis, speech analysis and other hundreds of code reference samples
* Provide the open source pre-training model

Efficient tool minimalism development

* Out of the box, the first example can be run in 30 minutes and the application deployment can be completed in 2 hours
* Supports the use of algorithm model adaptation tools in the Windows system
AI Perf
8 TOPS INT8
Memory
LPDDR4X，4GB，support ECC
CPU
4 core * 1.0 GHz
Encoding/Decoding Capacity
H.264 / H.265 hardware decoding，20-channel 1080p 30 FPS， 2-channel 4K 75FPS
JPEG decoding: 1080p 768 FPS; encoding: 1080P 256FPS; Max. resolution: 16384 x 16384
Expansion Interface
2x MIPI-CSI 51-pin connector， it can connect the camera module
1x MIPI-DSI 51-pin connector
2x RJ45 network ports, supporting adaptive 100/1000M
2x HDMI ports
2x USB 3.0 Type-A ports, compatible with USB 2.0
1x USB 3.0 Type-C port
1x 40-pin expansion connectors
Memory Interface
1x Micro SD Card Port
1x M.2 Key M port，support 1x NVMe SSD
Power
24W
Dimensions
135mm*120mm*44mm
