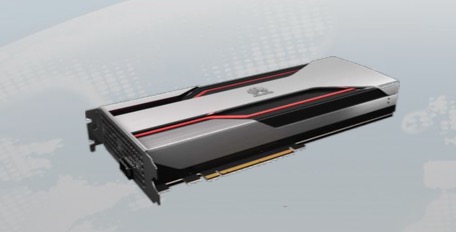

HUAWEI Ascend Atlas 300T Pro Training Card
Huawei Atlas 300T Pro training card is an AI accelerator card. It works with servers to provide powerful computing power– up to 280 TFLOPS FP16 performance in a single card – accelerating deep learning training for data centers. With supreme computing power, highest integration, and fastest bandwidth, the Atlas 300T Pro can easily meet computing needs in the Internet, carrier, finance, and HPC fields.
Basic specifications
|
Item |
Specifications |
|
Form factor |
FHFL dual-slot (10.5 inches) |
| Memory |
● 32 GB HBM
● 16 GB DDR4 ● 2400 Mbit/s ● ECC supported |
|
AI computing power |
● Half precision (FP16): The maximum computing power is 280 TFLOPS.
● Integer precision (INT8): The maximum computing power is 560 TOPS. |
|
Encoding/ Decoding capability |
16-channel 4K (or 64-channel 1080p) 60 FPS H.264/H.265 ● JPEG decoding: 1080p 2048 FPS or equivalent decoding capability, with a maximum resolution of 8192 x 4320● PNG decoding: 1080p 240 FPS or equivalent decoding capability, with a maximum resolution of 4096 x 2160 ● JPEG encoding: 1080p 256 FPS or equivalent encoding capability, with a maximum resolution of 8192 x 4320 |
| Network |
1 x 100GE QSFP-DD port, supporting RoCE |
|
Power consumption |
A maximum of 300 W |
|
Heat dissipation mode |
Passive air cooling |
|
Dimensions (L x W x H) |
266.7 mm x 111.15 mm x 39.04 mm |
|
Weight |
1.2kg |
|
Operating temperature
|
5°C to 45°C (41°F to 113°F) |
|
Storage temperature
|
-40°C to +70°C (-40°F to +158°F) |
