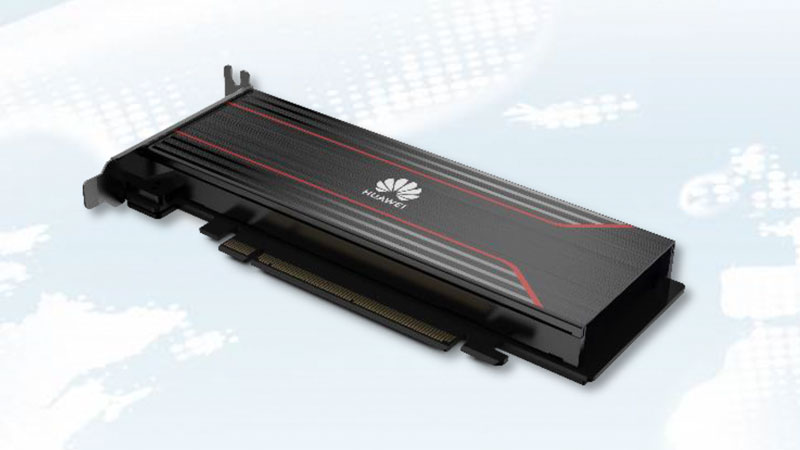

HUAWEI Ascend Atlas 300V Pro Video Analysis Card
The Atlas 300V Pro video analysis card integrates a general-purpose processor, AI Core, and codec, to provide AI inference and video/image encoding and decoding. Its numerous video analysis channels, fast feature retrieval, and secure boot features facilitate analysis of up to 128 real-time HD videos, making the Atlas 300V Pro a core component for AI-based environments, such as smart city, transportation, finance, and campus.
Specifications of the Atlas 300V Pro video analysis card
|
Feature |
Specifications |
|
Form factor |
HHHL standard PCIe card, supporting full-height and half- height brackets |
|
Memory |
LPDDR4X
Capacity: 48 GB Bit width: 384 bits Rate: 4266 Mbit/s Total bandwidth: 204.8 GB/s Error checking and correcting (ECC) |
|
AI computing power |
Half-precision (FP16): 70 TFLOPS Integer precision (INT8): 140 TOPS
|
|
Encoding/ Decoding capability |
H.264/H.265 decoder hardware decoding, 128-channel 1080p 30 FPS or 16-channel 4K 60 FPS
H.264/H.265 encoder hardware encoding, 24-channel 1080p 30 FPS or 3-channel 4K 60 FPS JPEG decoding capability of 4K 512 FPS and encoding capability of 4K 256 FPS, maximum resolution of 8192 x 8192 |
|
Board power |
72 W |
|
Dimensions (W x H x D) |
169.5 mm x 68.9 mm x 18.45 mm |
|
Weight (g) |
280g |
