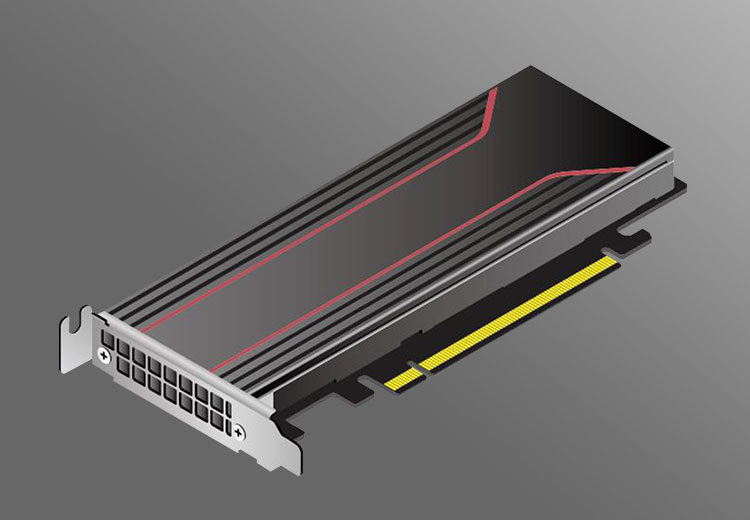

HUAWEI Ascend Atlas 300V Video Analysis Card
The Atlas 300V video analysis card is a next-generation high-performance parsing card powered by Ascend AI Processors. It integrates the general-purpose processor, AI Core, and codec to provide powerful AI inference and video and image encoding and decoding functions. With advantages such as numerous video parsing channels, high-performance feature retrieval, and secure boot, it supports real-time analytics of up to 100-channel HD videos and can be used in a wide array of AI application scenarios, such as smart city, smart transportation, and smart campus. The Atlas 300V video analysis card has two forms: half-height ejector.
Specifications of the Atlas 300V video analysis card
|
Feature
|
Specifications
|
|
Form factor
|
HHHL standard PCIe card, supporting full-height and half-height brackets
|
|
AI processor
|
One Ascend 310P AI Processor
* Eight Da Vinci AI Cores * Eight Huawei-developed CPU Cores |
|
Memory
|
* LPDDR4X
* Capacity: 24 GB * Bit width: 384 bits * Rate: 4266 Mbit/s * Total bandwidth: 204.8 GB/s * Error checking and correcting (ECC) |
|
AI computing powera
|
* Half-precision (FP16): 50 TFLOPS (Maximum computing power)
* Integer precision (INT8): 100 TOPS (Maximum computing power) |
|
Encoding/Decoding capability
|
* H.264/H.265 decoder hardware decoding, 100-channel 1080p 25 FPS, 80-channel 1080p 30 FPS, or 10-channel 4K 60 FPS
* H.264/H.265 encoder hardware encoding, 24-channel 1080p 30 FPS or 3-channel 4K 60 FPS * JPEG decoding capability of 4K 512 FPS and encoding capability of 4K 256 FPS, maximum resolution of 8192 x 8192 |
|
Virtual instance specifications
|
One Ascend AI Processor can be divided into several virtual NPUs in virtualization mode. Each virtual NPU supports 1, 2, or 4 AI
Cores, and other hardware resources (such as memory and codec module) are divided proportionally. One Ascend 310P AI Processor can be virtualized into a maximum of 7 virtual NPUs. |
|
PCIe port
|
* x16 lanes, compatible with x8/x4/x2
* PCIe Gen4.0, compatible with 3.0/2.0/1.0 |
|
PCI IDs
|
Vendor ID: 0x19E5
Device ID: 0xD500 Subsystem Vendor ID: 0x0200 Subsystem Device ID: 0x0100 |
|
Board Power
|
72W
|
|
Dimensions (W x H x D)
|
169.5 mm x 68.9 mm x 18.45 mm
|
|
Weight (g)
|
280 g
|
|
Item
|
Specification
|
|
Temperature
|
Operating temperature: 0°C to 55°C (32°F to 131°F)
Storage temperature: -40°C to +75°C (-40°F to +167°F) |
|
Humidity
|
Operating humidity: 5% RH to 90% RH (non-condensing)
Storage humidity: 5% RH to 95% RH (non-condensing) |
|
Maximum altitude
|
3050 m (10,006.56 ft.). For altitudes above 900 m (2952.72 ft.), the highest operating temperature decreases by 1°C (1.8°F) for
every increase of 300 m (984.24 ft.) in altitude.
NOTE: ASHRAE 2015 compliant:
* When the server complying with ASHRAE Classes A1 and A2 is used in the altitude of above 900 m (2952.76 ft), the highest operating temperature decreases by 1°C (1.8°F) for every increase of 300 m (984.25 ft). * When the server complying with ASHRAE Class A3 is used in the altitude of above 900 m (2952.76 ft), the highest operating temperature decreases by 1°C (1.8°F) for every increase of 175 m (574.15 ft). * When the server complying with ASHRAE Class A4 is used in the altitude of above 900 m (2952.76 ft), the highest operating temperature decreases by 1°C (1.8°F) for every increase of 125 m (410.10 ft). |
