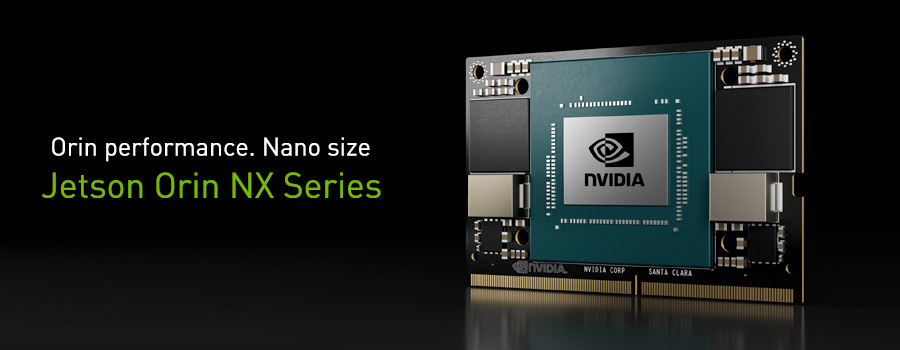

Jetson Orin NX modules deliver up to 100 TOPS of AI performance in the smallest Jetson form factor, with power configurable between 10W and 25W. This gives you up to 3X the performance of Jetson AGX Xavier and up to 5X the performance of Jetson Xavier NX. Jetson Orin NX is available in 16GB and 8GB versions.
Jetson Orin NX modules deliver up to 100 TOPS of AI performance in the smallest Jetson form factor, with power configurable between 10W and 25W. This gives you up to 3X the performance of Jetson AGX Xavier and up to 5X the performance of Jetson Xavier NX.
Jetson Orin NX Module Technical Specifications
|
|
Jetson AGX Orin NX 8GB |
Jetson AGX Orin NX 16GB |
|
AI Performance |
70 TOPS (INT8) |
100 TOPs (INT8) |
|
GPU |
NVIDIA Ampere architecture with 1024 NVIDIA® CUDA® cores and 32 tensor cores |
|
|
Max GPU Freq |
765 MHz |
918 MHz |
|
CPU |
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 |
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
|
CPU Max Freq |
2 GHz |
|
|
DL Accelerator |
1x NVDLA v2.0 |
2x NVDLA v2.0 |
|
DLA Max Frequency |
614 MHz |
|
|
Vision Accelerator |
PVA v2.0 |
|
| Memory |
8GB 128-bit LPDDR5 102.4 GB/s |
16GB 128-bit LPDDR5 102.4 GB/s |
|
Storage |
Supports external NVMe |
|
|
CSI Camera |
Up to 4 cameras (8 via virtual channels*) 8 lanes MIPI CSI-2 D-PHY 1.2 (20 Gbps) |
|
|
Video Encode |
1x 4K60 | 3x 4K30| 6x 1080p60 | 12x 1080p30 (H.265) H.264, H.265, AV1 |
|
|
Video Decode |
1x 8K30 | 2x 4K60 | 4x 4K30 | 9x 1080p60 | 18x 1080p30 (H.265) H.264, H.265, VP9, AV1 |
|
|
UPHY |
3 x1 + 1 x4 PCIe Gen 4 3x USB 3.2 Gen2 |
|
|
Networking |
1x GbE |
|
|
Display |
1x 8K60 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1 |
|
|
Other I/O |
3x USB 2.0 3x UART | 2x SPI | 4x I2C | 1x CAN | DMIC | DSPK | 2x I2S | 15x GPIOs |
|
|
Power |
10W | 15W | 20W |
10W | 15W | 25W |
| Mechanical |
69.6mm x 45mm 260-pin SO-DIMM connector |
|
*Virtual Channel related camera information for Jetson Orin NX is not final and subject to change.
